Vancouver XL4 Flat Roof

Color:Natural Walls
For items that shows the (ADD TO CART) 5 to 10 Business days delivery to your driveway. For (Pre-Order) 8 to 10 weeks delivery to your driveway.

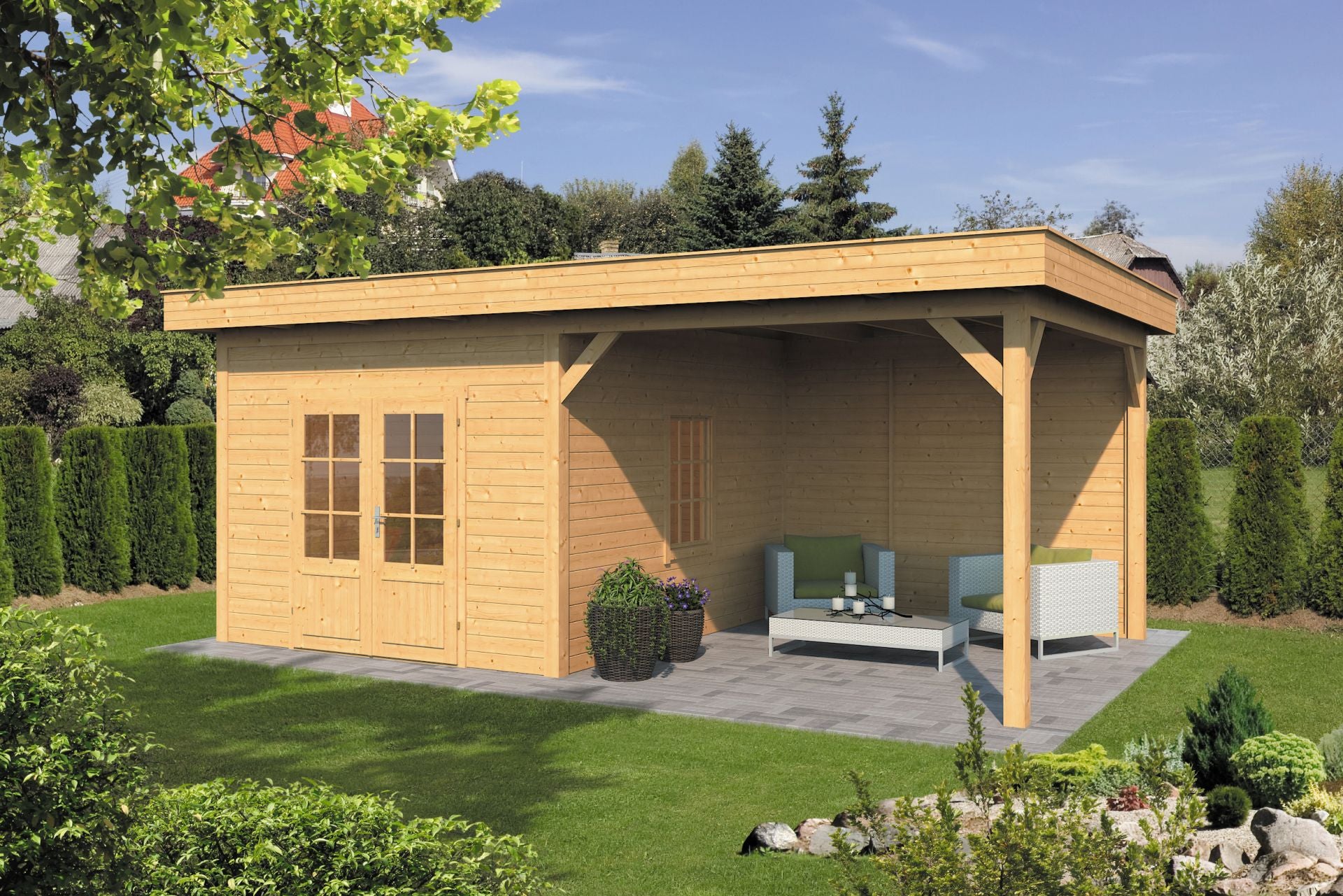

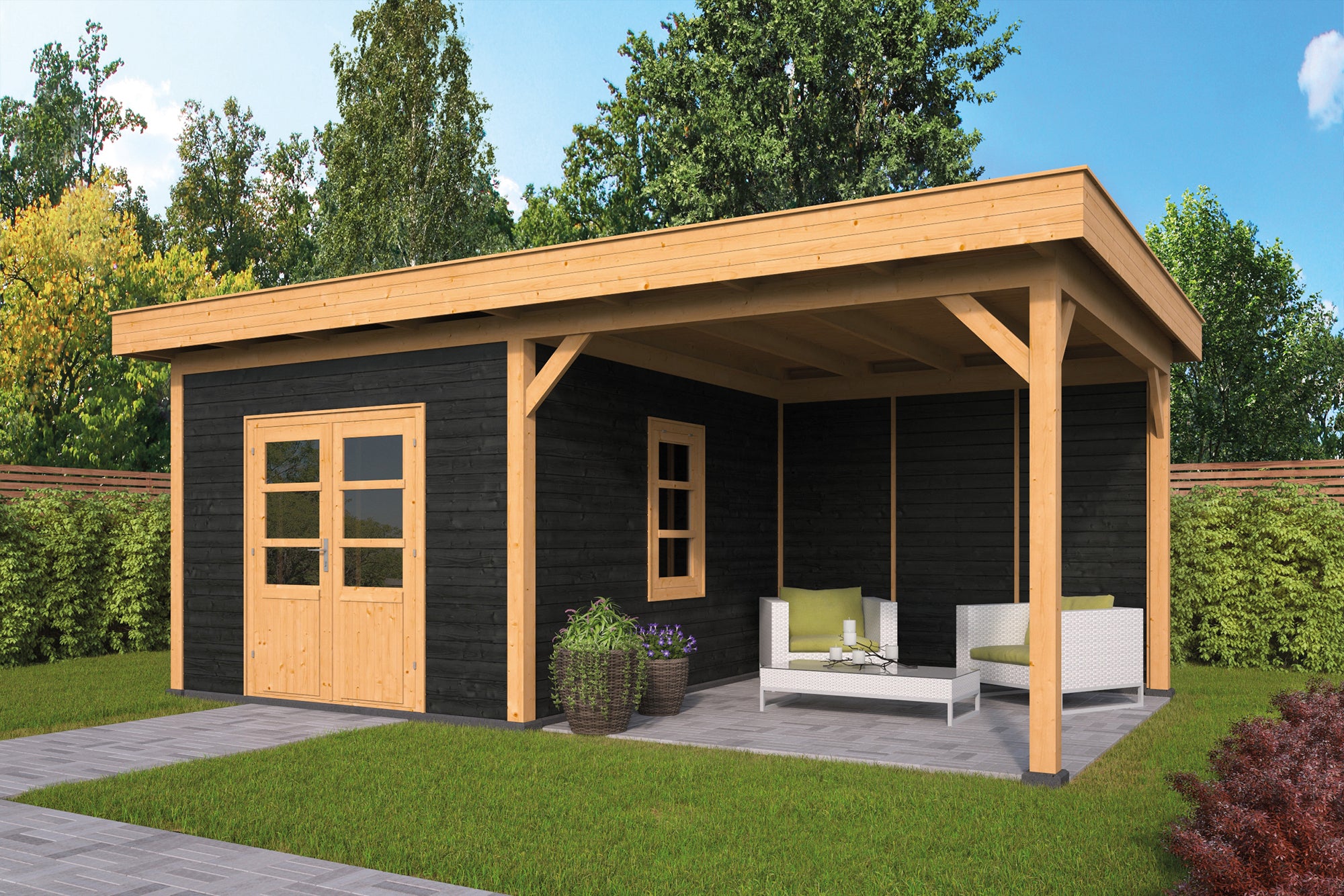

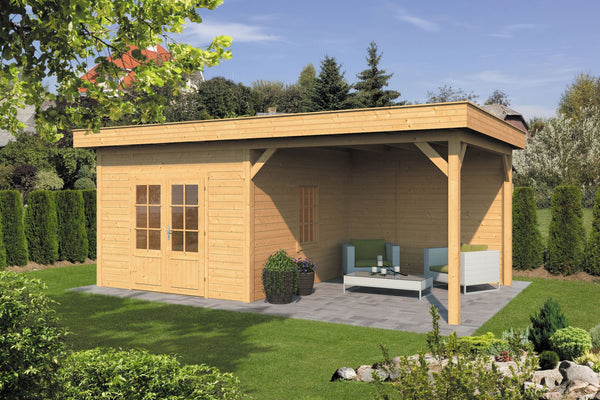

The Vancouver XL4 Flat Roof backyard building supplied with pre-coated black or natural walls and in a part enclosed and part open design. Comes as standard with EPDM rubber roofing which outlasts any type of felt with an overall size of 22',3"x 14',1".

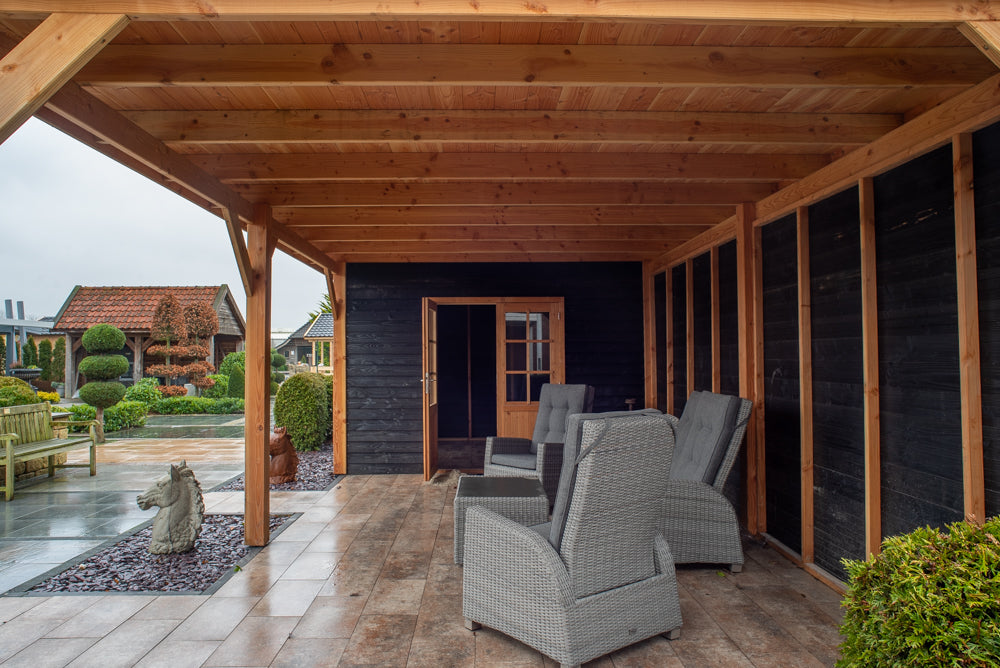

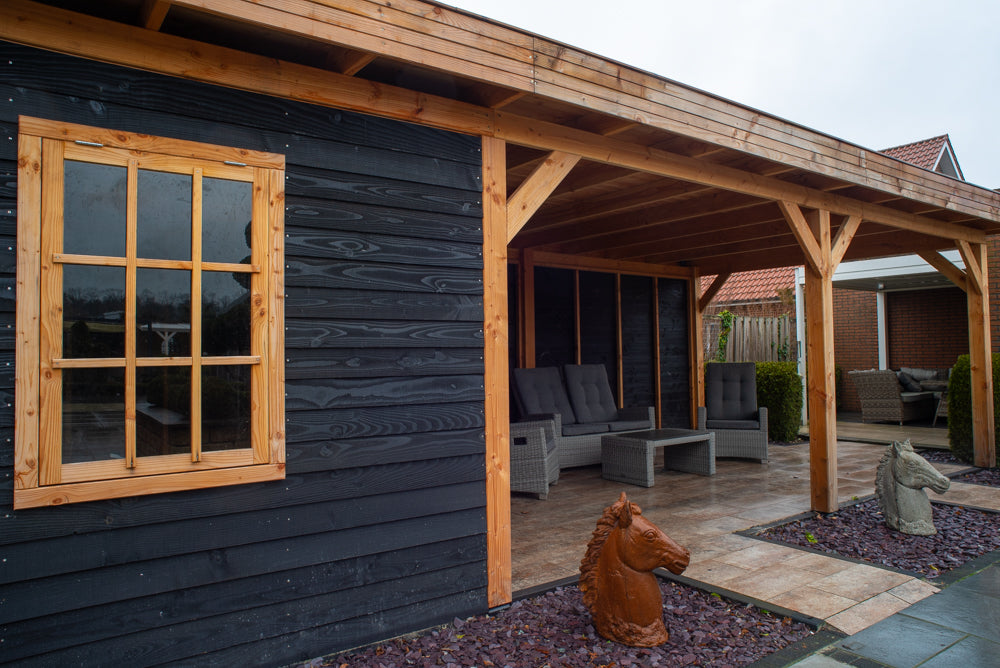

Featuring one fully enclosed bay with a set of double French doors and window and the other left mostly open allowing a combination of shelter and protection all in one.

The Douglas timber supplied is dried and planed smooth, Some construction experience is required although straightforward to install some skills are needed with an array of basic tools.

Ideal for those who enjoy entertaining outdoors, the combination of enclosed and open creates the perfect venue for summer parties and barbeques. The roof provides shade and shelter from the elements whilst the open sides allow for uninterrupted views of your backyard.

The walls supplied arrive pre-treated with a black finish.

Below we have outlined the basic sizes

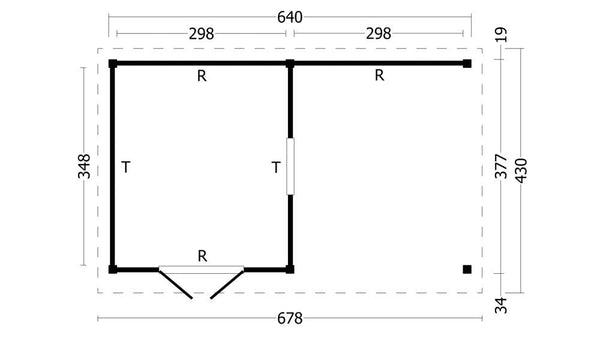

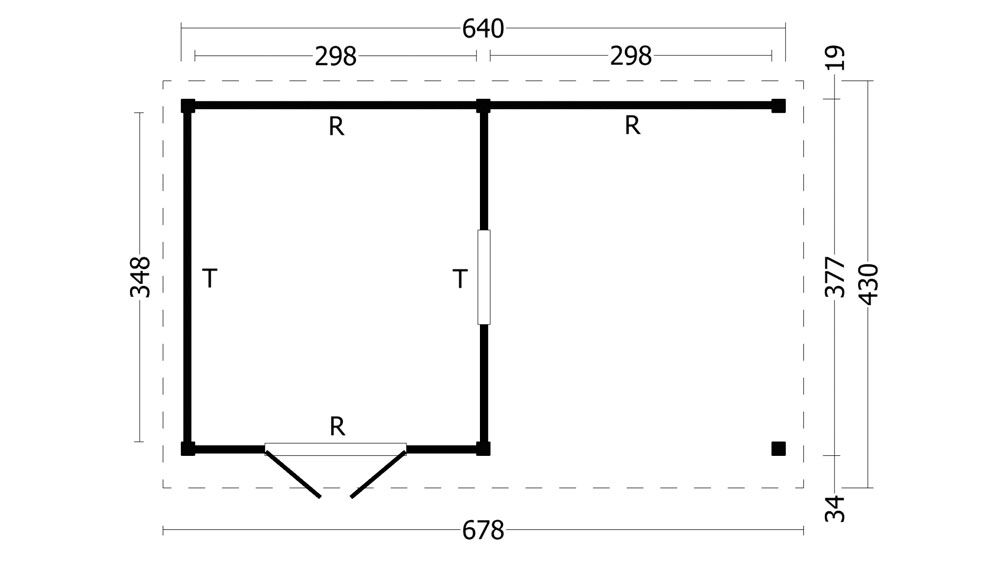

 Vancouver XL4 Flat Roof Sizes:

  • Outer Post to Post Width - 252"
  • Outer Post to Post Depth - 149"
  • Overall Width include roof - 267"
  • Overall Depth include roof - 170"
  • Bay Walkthrough Height - 91"

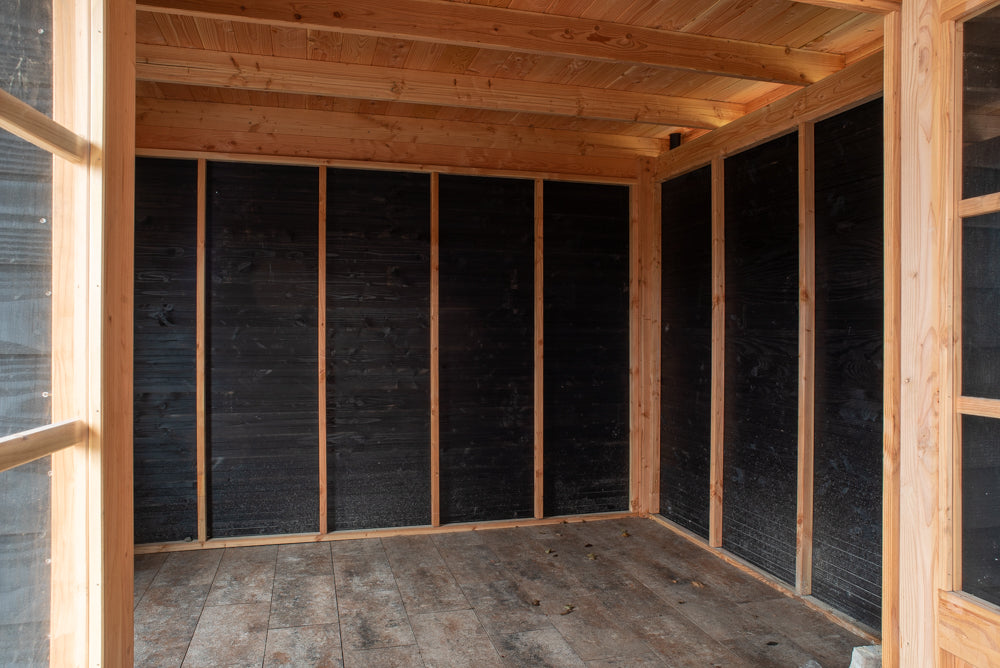

  • Room -118" x 137"
  • Overall Height - 107"
  • Front Roof Overhang - 14"
  • Rear Roof Overhang - 8"
  • Side Roof Overhangs - 8"
  • Posts - 6"

Supplied with:

  • EPDM Rubber Roofing with Glue
  • Rubber Drainage Outlet x 1
  • Dried, smooth planed Larch
  • Special fixing screws for use with Larch / Douglas
  • Various other drill bits
  • Instruction manual and plans
  • Two Rear Wall modules
  • Two Side Wall Module
  • One Front Wall Module
  • One Set of Double French Doors
  • One Top Hung Window

Douglas timber

Comes from well managed forest and is one of the most durable softwood species. It has a very warm color and texture. Douglas is in great demand for use in building due to being tough, waterproof and high durable qualities: top quality and knot free timber.
