Azores 70MM Log Cabin Cottage Prefab Affordable House 30'.9" x 27'.8" (860 SQ FT)

For items that shows the (ADD TO CART) 5 to 10 Business days delivery to your driveway. For (Pre-Order) 8 to 10 weeks delivery to your driveway.

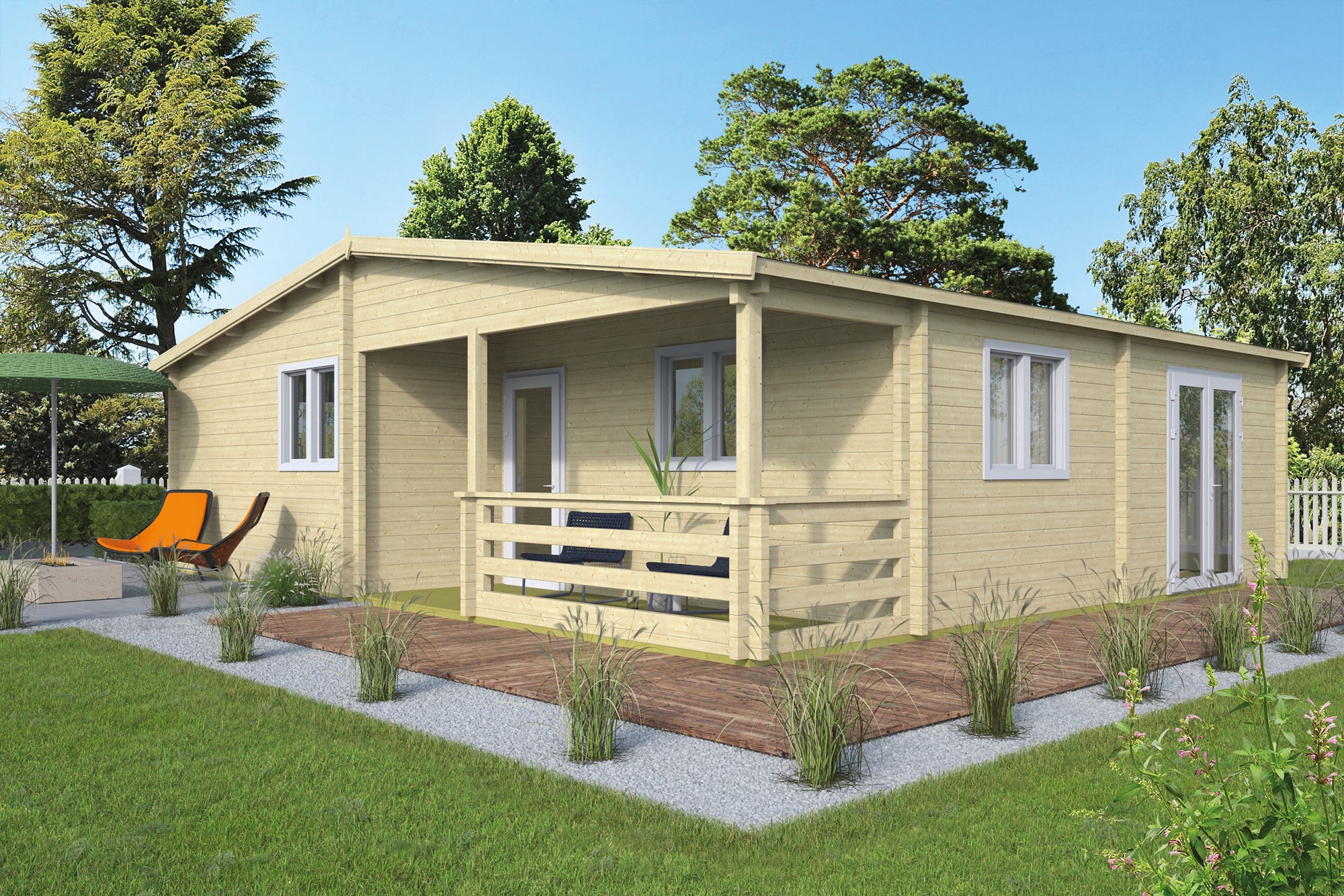

A large log cabin, Log home, residential tiny home, secondary suite, modular home and affordable prefab home designed especially for your backyard if you have the room and location. Made from 70mm thick logs the Azores measures 9.41 x 8.48m. It has four rooms internally and a small terrace area externally.

FREE Roof Shingles offer

The Azores Log Cabin features a combination of thick 70mm interlocking wall logs and double glazing - together these provide a natural warmth and create a cozy, homely feeling, especially with the addition of insulation within the floor and roof.

Perfect as overnight, occasional guest accommodation, the interior of the Azores is split into four distinct rooms using full height internal partitions.

This building is manufactured using quality Spruce logs, these offer a tight wood grain and ultimately a durable garden building. All timber is specially selected for the interlocking construction and for the highest quality finish, ELL log cabins do not feature mixing of timber varieties.

For an all year round cabin, learn more about insulating your cabin.

New PVC Windows and Doors available for selection (LUXURY) with your Log Cabin. For a hardwearing and low maintenance window type.

The Azores Log Cabin features as standard:
  • 70mm interlocking wall logs.
  • Triple conical tongue and groove for stability.
  • 8 Double glazed opening windows.
  • Double glazed entrance door.
  • Double Glazed French doors.
  • 28mm Floor and roof
  • Quality door and window fittings
  • Double glazing
  • Roofing felt or FREE shingles
  • Tanalised foundation beams
  • Fixing kit and instruction manual
  • Wind and watertight connections
  • Air Vent (6)

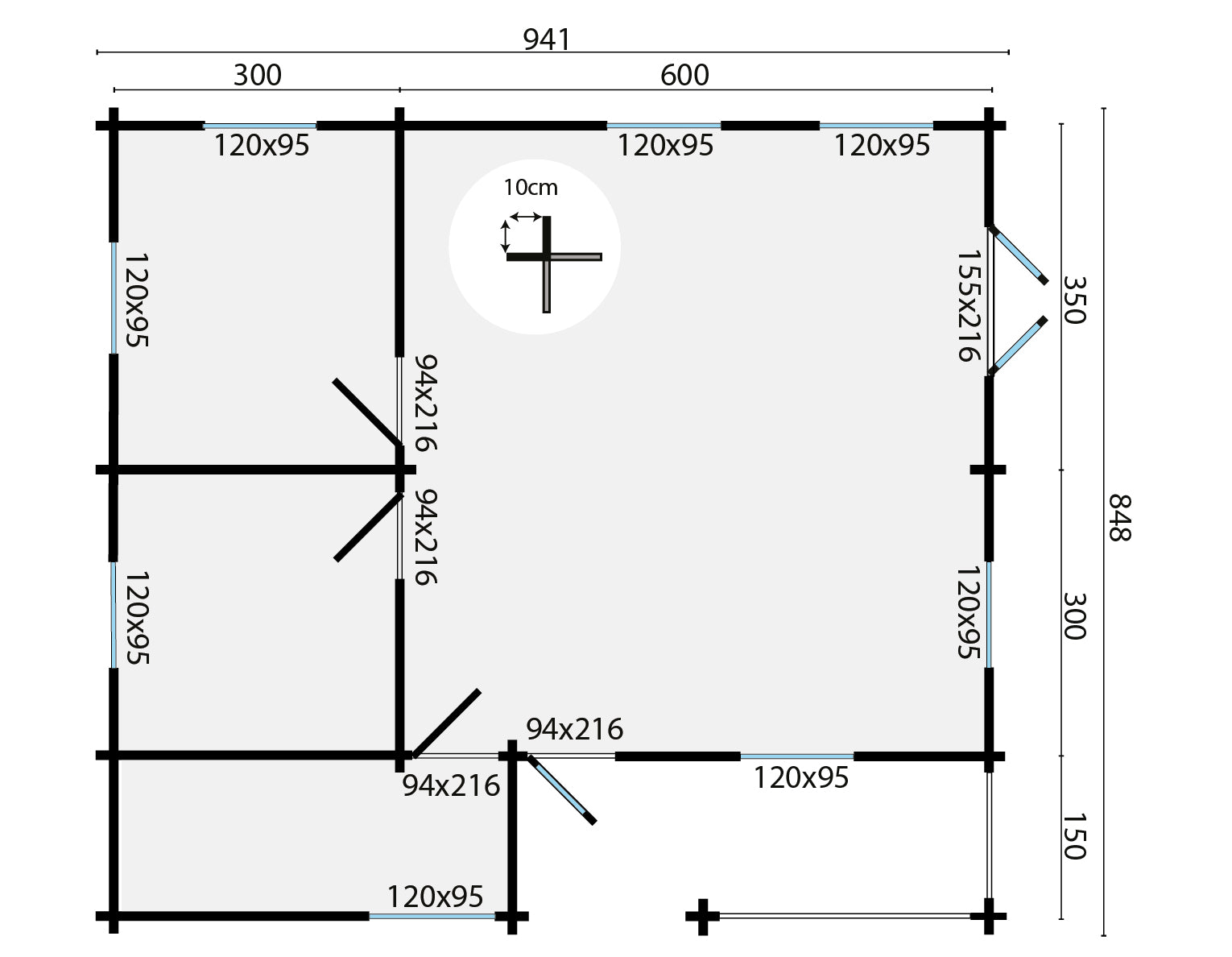

  • Overall Dimensions: 9.41 x 8.48m.
  • Building Footprint: 9.19 x 8.26m
  • Ridge Height: 3.17m
  • Door Height (including frame): 2.16m

Azores Log Cabin Optional Extras:

Note that quantities are approximate

  • Coloured Felt Roof Shingles
  • Storm kit
  • Shingle Glue (8)
  • Guttering 100mm

Optional Extras - Treatments

Please note, this cabin is supplied untreated, we recommend that the building is treated with high quality paints and treatments. They should be applied strictly to the manufacturer's recommendation. We also offer our own treatments:

  • Carefree treatment (18 2.5l tins)
  • Embadecor Stain (8 2.5l tins)
  • Embalan Paint (8 2.5l tins)
  • Impregnation Fluid (4 2.5l tins)
  • Factory Impregnation in three colours

Quality check:

  • No Mixed timbers known as Spruce and Pine mix
  • Spruce timber is used throughout this log cabin
  • Wind and Watertight Log Connection
  • 5% Finger Joints
  • 10 year anti rot promise
  • 14% moisture content
  • Dutch Standards


Finishing              planed

Model   rectangle

Treatment           untreated

Type of door      single door

Type of roof       apex roof

Wood type          spruce

Mirrored construction    no

surface canopy  7,20 m²

Foundation Wood included       Yes


Suitable for roof tiles      no

Storm anchor included   no

Number of opening windows      8

Opening direction door  left hinged

Roof covering included   no

Inner floor surface area 65,20 m²

Dimensions of corner profile       10,00 cm

Foundation dimensions 1 Width 828,00 cm

Foundation dimensions 1 Length              921,00 cm

Installation hardware included    no

Roof surface area            87,20 m²

Extra text field   The thickness of the wooden floor and roof boards of this log cabin is 27mm, which is ideal for insulation. Please note the unique package number is stated in the manual, on the drawing and on the sticker at the top of the package. Unfortunately, we cannot process service requests without this package number.

Depth    848,00 cm

Glass      insulating glass

Width    941,00 cm

Balustrade           Yes

Content (m3)      179,30 m³

Number of doors             5

Number of rooms            4

Ridge height       317,00 cm

Cylinder lock      Yes

Floor included    Yes

Package weight 6860,00 kg

Wall thickness    70,00 mm

Glass thickness   4-8-4mm

Side window to be installed left and right              no
